From the Manufacturer
Universal 32-65" Plasma/LCD TV Tilt Wall Mount for 32" - 65"
This mount features heavy gauge cold-rolled steel for a stability and security. The mount profile is 1.4" in the flat position yet provides for up to 25 degrees of forward tilt. The exact amount of forward tilt depends on the size of your TV. Typically a 32" unit can tilt the full 25 degrees whereas 65" units are limited to about 15 degrees as at some point the bottom of the TV touches the wall. Dual barbell type adjustment knobs lock the angle of tilt on each of the two display brackets. The brackets mount separately to the display allowing for lift and lock installation.
Universal Fit
The universal design fits the vast majority of 32-65" TVs. Specifically it will fit any TV up to 165LBS with a hole pattern up to 28" horizontally and 19" vertically. This includes the standard VESA 100, 200 and 400 hole patterns. The mount does not fit VESA 800. VESA 800 has unusually wide mounting holes which are 800mm (approximately 32") apart horizontally and is used by certain LG and Philips units.

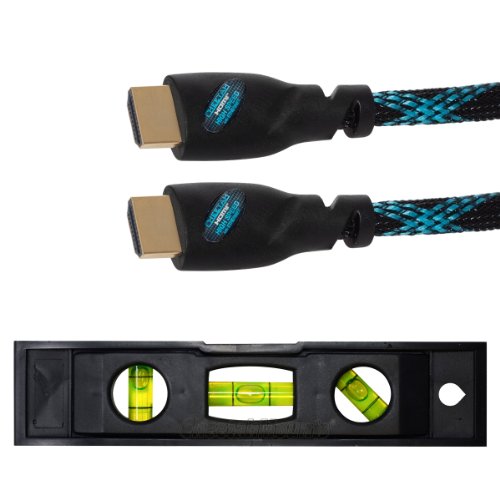

FREE 10 FT High Quality HDMI Cable
The mount includes a state of art 10 feet long HDMI cable . This high speed HDMI cable supports 1080P and 3D 1080P , Ethernet ready with Audio return . The cable has 24 K Gold connectors and is double shielded with a designer braided jacket for elegant looks .
Features
- Heavy Gauge Steel
- Universal Design Fits Most 32-65" TVs/Displays
- Very Thin 1.4" Profile
- Toggle Bolts in Additional to Wood Screws to Prevent Flex
- 0-25 Degrees of Tilt
- High Quality Powder Coat Paint
- Maximum Weight Capacity: 165 lbs (75 kg)
- Dual Safety Screws to Lock Display Once Mounted
- Large Rectangular Cable Pass Through Opening in Wall Plate
- Separate Display Brackets for Lift and Lock Installation
- Printed instructions and all necessary mounting hardware included
Specifications
| Model | APTMM2B |
| Supported VESA Patterns/Hole Pattern Coverage | Up To VESA 400x600mm or 27.7" Horizontal by 19" Vertical |
| Unit Weight | Net: 8LBS Gross: 9 LBS |
| Shipping Dimensions | 31” by 10” by 2.5” |
| Unit Materials | Arms, Wall Plate: 100% High Grade Steel |
| Tilt Range | 15° Downward |
| Wall Plate Screw Slots | 1.5" Wide by 0.5" Apart |
| Profile From Wall | 1.4" |
| Wall Plate Dimensions | 30”H x 9.5”V (dual stud installation) |
| Cable Management | 29.5"H x 5.5" |
Installation Information

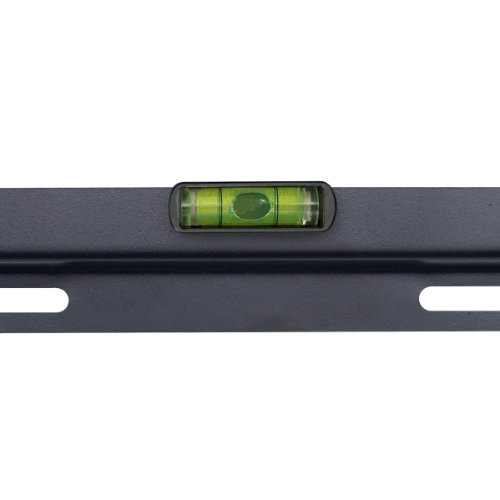

The wall plate has a very large rectangular 5.2x29.6" opening for cable management. This can accommodate a standard US electrical outlet which is 4 3/8" tall. Mounting slots each 1.3" wide run along the entire top and bottom of the 30" wide wall plate. The 30" width of the wall plate is narrow enough to be concealed behind typical 32" displays and allows for the wall plate to span across two typical US studs 16" center to center. In addition to the four wood screws provided for anchoring into the studs, this mount also includes two toggle bolts to secure the corners of the mount where they overhang significantly from the closest stud to prevent any flex or instability in the wall plate. Most competing mounts do not include the extra toggle bolts. This mount will also span across studs on 20" and 24" centers. This mount does not span across three 16" studs. Additionally, certain 32" displays with separate or bottom mounted speakers and with minimal frame bezels may not completely conceal the 30" width of the wall plate.
Whats in the Box
- Wall plate with Extending Arms
- Vertical Brackets for TV

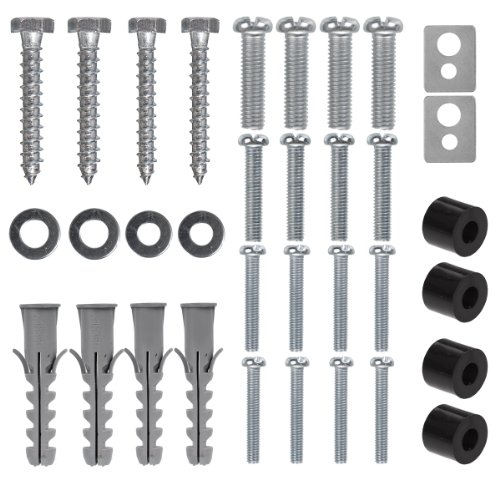

- Hardware for Wood Stud Installations
- Hardware for concrete Wall Installations
- Parts list and installation manual
Click here for complete part details
